说明:
本系列收集了自控仪表管路系统中各种连接形式和结构式管接头、短节、管嘴、转管接头温度计套管等产品,品种多、规格全,适用广,是管路中必不可少的连接件。压力表接头YZG12系列是一种应用很广泛的接头,只要有压力表,就有YZG12系列的接头。YZG12系列接头制造材料要与管道材料相同或高于管道材料,常用的标准件的材质是20号钢、1Cr18Ni9Ti、316和316L,选用时要高选一档。温度适应范围大,通常T≤800°C,它能正常使用。
Explain:
This series collects all kinds of connection forms and structural couplings, nipples, nozzles, rotary couplings, thermowells and other products in the automatic control instrument pipeline system. It is an essential connecting piece in the pipeline with a wide range of varieties, specifications and applications. Pressure gauge connector YZG12 series is a widely used connector. As long as there is a pressure gauge, there are YZG12 series connectors. The manufacturing material of YZG12 series joints shall be the same as or higher than the pipe material. The commonly used standard parts shall be made of 20# steel, 1Cr18Ni9Ti, 316 and 316L, and shall be selected at a higher level. The temperature can adapt to a wide range, usually T≤800°C, and it can be used normally.
性能规范:
□公称压力:1.0MPa~3.2MPa
□适用温度:-70℃~+450℃
□制造材料:20#,H62,1Cr18Ni9Ti,316L,0Cr18Ni12Mo2Ti
□执行标准:《仪表工手册》乐嘉谦著 第五篇 仪表安装>>第三章 仪表加工件>>第一节 仪表接头

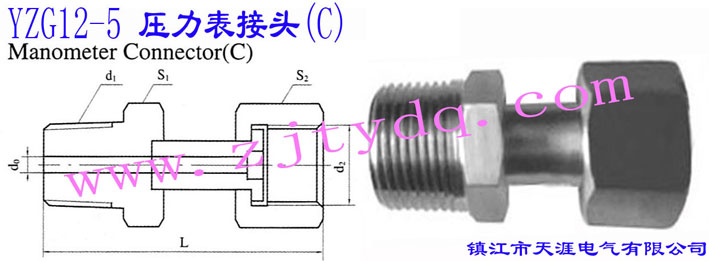

YZG12-5 压力表接头(C)
YZG12-5 Manometer Connector C

d1 |
d2 |
d0 |
I |
S1 |
S2 |
代 号Code No. |
ZG1/4" |
M20×1.5 |
4 |
65 |
19 |
27 |
YZG12-5-ZG1/4"-M20×1.5 |
ZG1/2" |
M20×1.5 |
4 |
75 |
27 |
27 |
YZG12-5-ZG1/2"-M20×1.5 |
※注:YZG12-5 压力表接头(C)Manometer Connector C 如有改进,恕不另行通知,以产品实物为准。
联系我们(Contact Us):
名称:镇江市天涯电气有限公司
地址:江苏省 镇江市 扬中经济开发区新星村1018号
联系人:董增良

13852955532(微信同号) 18952970505(微信同号)
电话:+86-511-88452857
传真:+86-511-85922857
邮编:212200
网址:http://www.zjtydq.com
公司名称:镇江市天涯电气有限公司
统一社会信用代码:913211826945904939
地址、电话:扬中经济开发区新星村1018号 0511-88452857
开户行:中国农业银行扬中开发区支行
账号:10333501040008042
接收行行号:103314333352
搜索关键词:仪表管接头 仪表阀门 YZG12-5 压力表接头(C)Manometer Connector C 镇江市天涯电气有限公司
YZG12-5 压力表接头(C)此类接头也称压力表转换接头。如果管道上、设备上都有一阀门,其内螺纹为ZG1/2"或ZG1/4",就可用这种接头。它的两端接头分配是一端外螺纹ZG1/2"和ZG1/4"两种,另一端内螺纹为M20×1.5。
YZG12-5 pressure gauge connector (C) This type of connector is also called pressure gauge adapter. If there is a valve on the pipeline and equipment, and its internal thread is ZG1/2" or ZG1/4", this joint can be used. The two ends of the connector are divided into two types: one end external thread ZG1/2"and ZG1/4", and the other end internal thread M20×1.5.
