Explain: This series collects all kinds of connection forms and structural couplings, nipples, nozzles, rotary couplings, thermowells and other products in the automatic control instrument pipeline system. It is an essential connecting piece in the pipeline with a wide range of varieties, specifications and applications. YZG13 series glass plate level gauge connector is applicable to the glass level gauge of various containers.

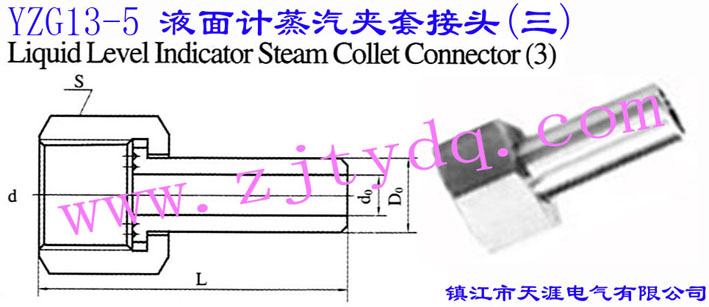

YZG13-3 液面计蒸汽夹套接头(一)、YZG13-4 液面计蒸汽夹套接头(二)、YZG13-5 液面计蒸汽夹套接头(三)这三种接头功能相似,结构形式不一样,有两头为外螺纹的[(一)型],一端外螺纹、一端焊接的[(二)型]和一端焊接、一端内螺纹[(三)型]的,按现场具体情况而选取。 YZG13-3 level gauge steam jacket connector (I), YZG13-4 level gauge steam jacket connector (II), YZG13-5 level gauge steam jacket connector (III),the three types of joints have similar functions and different structural forms, including [(I) type] with two ends of external thread, [(II) type] with one end of external thread and one end of welding, and [(III) type] with one end of welding and one end of internal thread, which are selected according to the specific situation on site.
