Explain: This series collects all kinds of connection forms and structural couplings, nipples, nozzles, rotary couplings, thermowells and other products in the automatic control instrument pipeline system. It is an essential connecting piece in the pipeline with a wide range of varieties, specifications and applications. The short joint YZG14 series is essentially a pressure taking part. It is applicable to various measuring circuits, especially pressure, flow and liquid level.

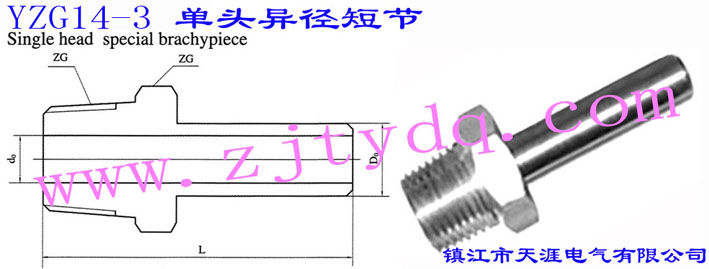

YZG14-3 单头异径短节 YZG14-3 Single Head Red-Reduced Short-circuit
ZG
D
d0
S
L
代号Code No.
ZG3/8"
14
9
19
120
YZG14-3-ZG3/8"-Φ14
ZG1/2"
14
9
24
120
YZG14-3-ZG1/2"-Φ14
ZG3/4"
14
9
30
120
YZG14-3-ZG3/4"-Φ14
可指定长度L定制生产
YZG14-3 单头异径短节,一端有外螺纹ZG3/8"、ZG1/2"和ZG3/4",直接与阀或设备、仪表连接,另一端为外径Φ14,可与导压管直接连接。 YZG14-3 single-head reducing nipple, with external thread ZG3/8 ", ZG1/2" and ZG3/4 "at one end, is directly connected with valve or equipment and instrument, and the other end is external diameter Φ 14. It can be directly connected with the impulse pipe.
※注:YZG14-3 单头异径短节Single Head Red-Reduced Short-circuit如有改进,恕不另行通知,以产品实物为准。
